AGV (Automated Guided Vehicles)

AGV (Automated Guided Vehicles)

Automated Guided Vehicles increase the efficiency and the safety of intralogistic operations – both indoors and outdoors – ensuring:

  • High application flexibility.
  • Finished product
  • Less costs due to damage to structures.

Thanks to safety laser scanners, AGVs guarantee maximum reliability when picking up and putting down products, avoiding risks for operators.

Navigation systems:

  • Laser guided, with SLAM/reflectors overhead and on the floor. Advantages: high flexibility, reduced installation times.

Types of batteries:

  • Lithium battery.
  • Lead-acid battery.

Charging strategies:

  • Charging through contacts (biberonnage).
  • Manual or automatic battery change.
BROCHURE

COUNTERBALANCED AGVs

These counterbalanced vehicles are capable of operating both indoors and outdoors; they can also be equipped with double forks, forks with translators or centering devices, telescopic forks, hydraulic clamps, or container tilting devices.

PAQUITO 2.0


Paquito is able to handle materials and finished products with a maximum weight of 1,300 kg (loading center: 600 mm).



STRENGTHS


  • Available version PAQUITO HEAVY, with load capacity up to 1,500 kg.
  • Lifting capacity up to 5 m.
  • Speed up to 1.8 m/s.
  • Forks with automatic translation and centering.
  • Compact size for maximum maneuvering freedom.
  • Front and side bumpers in addition to front and rear laser scanners.


THOR


Thor is a vehicle for handling materials and finished products that can also be equipped with forks, side telescopic forks and accessories for handling drums, metal tanks and reels.



STRENGTHS


  • Up to 3,000 kg load capacity (loading center: 600 mm).
  • Lifting capacity up to 8 m post.
  • Speed up to 1.5 m/s.
  • Forks with automatic translation and centering.
  • Front and side bumpers in addition to front and rear laser scanners.

PALLET TRUCKS

These AGVs are pallet truck type vehicles with mast up to 5 m and particularly suitable for maneuvering in tight spaces. Safety based on front and side bumpers in additionto front and rear laser scanners.

OBERON



STRENGTHS


  • Up to 1,600 kg load capacity.
  • Lifting capacity up to 3 m.
  • Speed up to 1.5 m/s.
  • Compact size for superior maneuvering freedom.
  • Front and side bumpers in addition to front and rear laser scanners.

ESALINK 2.0


Latest generation pallet truck, suitable for pallet handling. The forks can be internal to the support wheels (GS version) or external to them (GL version).



STRENGTHS


  • Up to 1,650 kg load capacity.
  • Lifting capacity up to 5 m.
  • Speed up to 1.5 m/s.
  • Forks with automatic translation and centering.
  • Compact size for superior maneuvering freedom.
  • Front and side bumpers in addition to front and rear laser scanners.

ESAFLAT 65


Pallet truck type vehicle for heavy loads handling.



STRENGTHS


  • Up to 6,500 kg load capacity.
  • Loading bed riser: 100 mm.
  • Speed up to 1.5 m/s.
  • Front and side bumpers in addition to front and rear laser scanners.

INDOOR TURTLES

DUKINO



STRENGTHS


  • Up to 400 kg load capacity.
  • Speed up to 1.5 m/s
  • Loading bed riser: 80 mm.
  • Option of installing a simple bed, lifting bed, motorized roller conveyors, chain conveyors and belts.

MAXI OUTDOOR SHUTTLES

They transport and protect finished products from the place of manufacture to any surrounding facilities. The use of these vehicles replaces the intensive use of trucks, reducing carbon dioxide emissions.

BIBE 120



STRENGTHS


  • Up to 12,000 kg load capacity.
  • Speed up to 1.3 m/s.
  • Automatic load covering.
  • Modular belts to move baskets.
  • Front and side bumpers in addition to front and rear laser scanners (outdoor).

ESANAV 3RL-45



STRENGTHS


  • Up to 4,500 kg load capacity.
  • Three motorized independent roller conveyors.
  • Automatic load covering.
  • Speed up to 1.3 m/s.
  • Front and side bumpers in addition to front and rear laser scanners.

ESANAV 35



STRENGTHS


  • Up to 4,000 kg load capacity.
  • Single large motorized internal roller conveyor.
  • Automatic load covering.
  • Speed up to 1.3 m/s.
  • Front and side bumpers in addition to front and rear laser scanners.

ESANAV 2C



STRENGTHS


  • Up to 4,000 kg load capacity.
  • Loading bed height: 400 mm from the ground.
  • Two motorized independent roller conveyors.
  • Automatic load covering.
  • Speed up to 1.3 m/s.
  • Front and side bumpers in addition to front and rear laser scanners.

ESACHAIN 80



STRENGTHS


  • Up to 8,000 kg load capacity.
  • Loading bed height: 1000 mm from the ground.
  • Two motorized independent chain conveyors.
  • Speed up to 1.3 m/s.
  • Front and side bumpers in addition to front and rear laser scanners.

ESANAV 8



STRENGTHS


  • Up to 8,000 kg load capacity.
  • Loading bed height: 1000 mm from the ground.
  • Two motorized independent roller conveyors.
  • Speed up to 1.3 m/s.
  • Front and side bumpers and ultrasonic sensors.

ESANAV 16



STRENGTHS


  • Up to 16,000 kg load capacity.
  • Loading bed height: 1000 mm from the ground.
  • Automatic load covering.
  • Speed up to 1.3 m/s.
  • Front and side bumpers and ultrasonic sensors.

ESANAV R65



STRENGTHS


  • Up to 6,500 kg load capacity.
  • Loading bed height: 400 mm from the ground.
  • Two motorized independent roller conveyors.
  • Automatic load covering.
  • Speed up to 1.3 m/s.
  • Front and side bumpers and ultrasonic sensors.

ESANAV XL80



STRENGTHS


  • Up to 5,000 kg load capacity.
  • Loading bed height: 400 mm from the ground.
  • Two motorized independent roller conveyors.
  • Automatic load covering.
  • Speed up to 1.3 m/s.
  • Front and side bumpers and ultrasonic sensors.

SHUTTLES FOR DRIVE-IN

TALP-ONE


Ideal for handling pallets inside drive-in warehouses, allowing the operator or AGV to place and pick up products at the entrance of the drive-in, without entering the lane.



STRENGTHS


  • Up to 1,300 kg load capacity.
  • Maximum speed: 1 m/s.
  • Acceleration: 1 m/s².
  • It can operate in cold storage rooms (down to – 30°C).

SHUTTLES FOR STACKER CRANES

TALP-OTTO


Talp-otto is a shuttle for handling pallets with stacker cranes inside drive-in warehouses.



STRENGTHS


  • Up to 1,300 kg load capacity.
  • Maximum speed: 1 m/s.
  • Acceleration: 1 m/s².
  • It can operate in cold storage rooms (down to – 30°C).

VEHICLES FOR SHUTTLE MOVEMENT

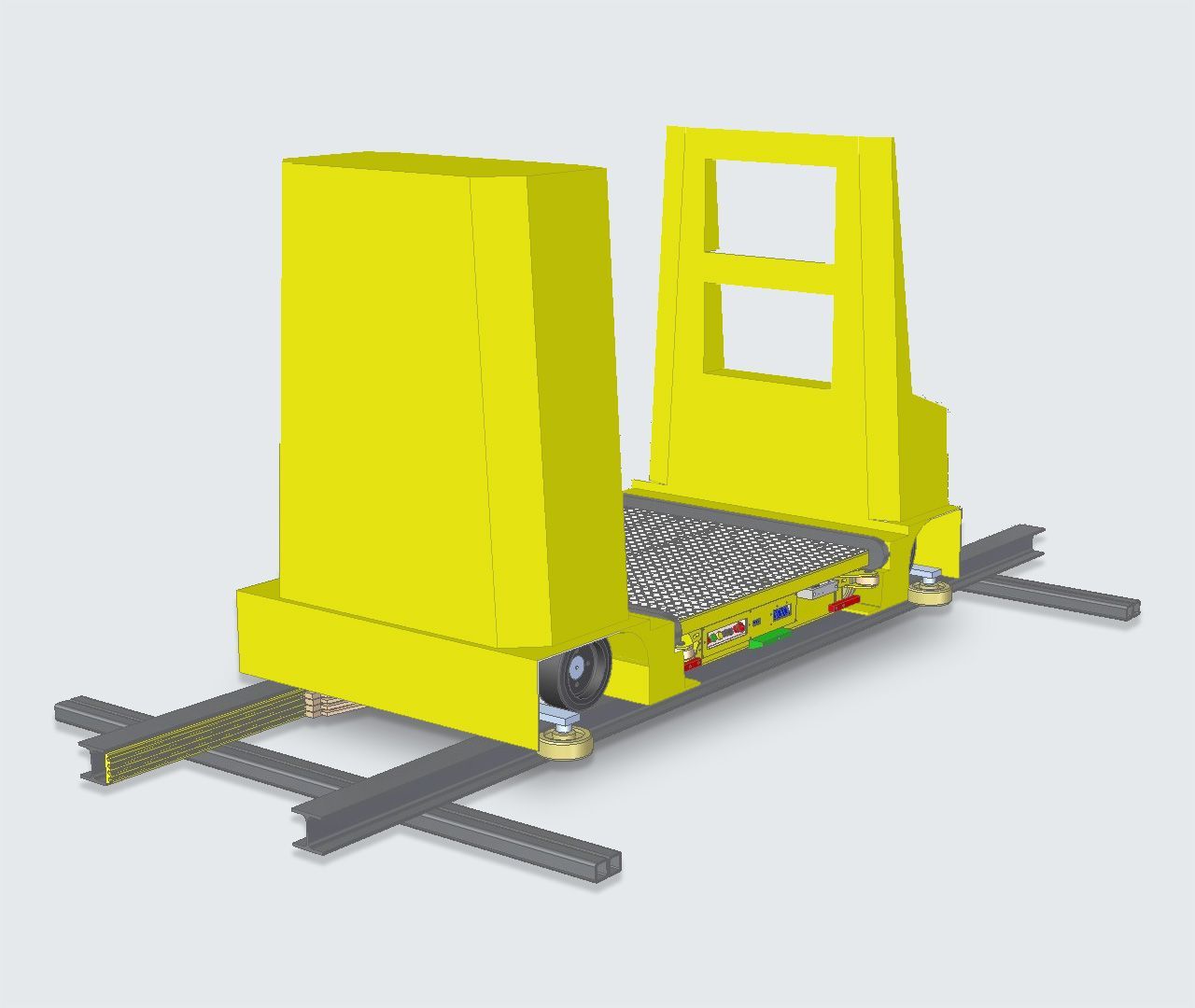

MAMY


Vehicle for transferring shuttles in high-density warehouses.
MAMY carries the shuttle (without or without load) and takes it to the head of the aisle where the pallet needs to be placed/picked up.



STRENGTHS


  • Up to 2,400 kg load capacity.
  • Speed up to 1.5 m/s.
  • The vehicle is powered by busbar and at the same time charges the batteries of the shuttle during operation.
